AWS Serverless

This talk is NOT about:

selling AWS

or Serverless framework, for that matter

"new" futuristic ideas

solving ALL specific problems

Traditional Infrastructure And Setup

We have built over the years:

Jenkins farm

on AWS EC2 intances

Complex pipelines for Web, Performance tests

and Monitoring of Staging and Production environments

Configuration management and Infrastructure as Code solutions

WE wanted to move away from:

Overhead of System administration to maintain the EC2 instances

Everything required Operations framework and knowledge

Additional time on every update that had to be made

... like browser and driver pairs

Strong vendor lock-in, we were completely dependent on a third-party provider.

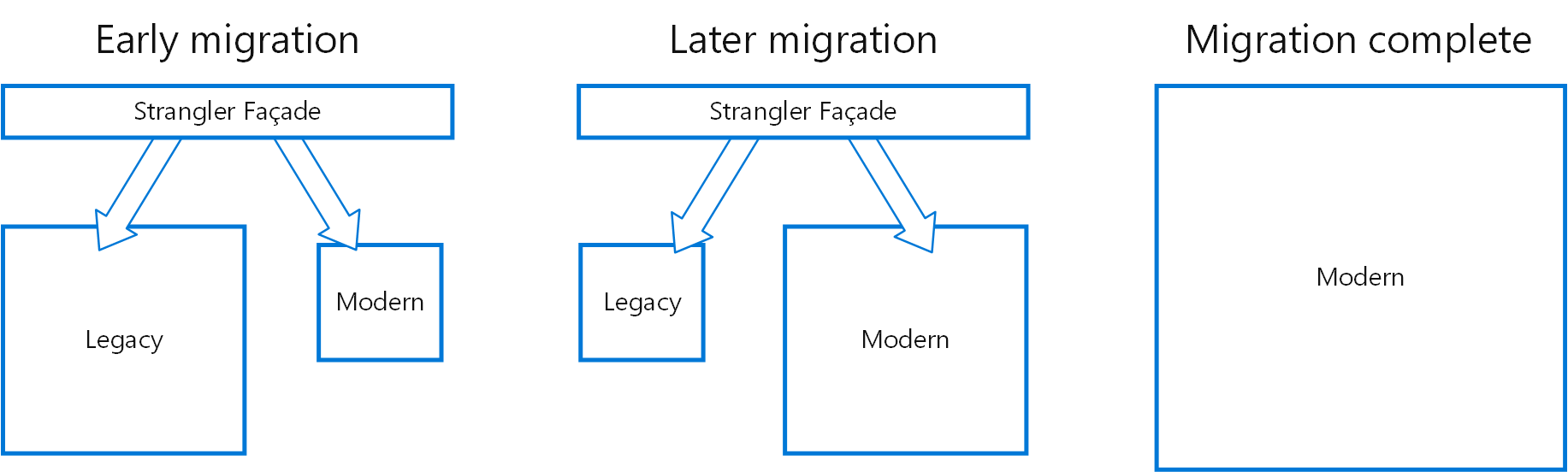

Strangler Application Pattern

Context: As systems age, the development tools, hosting technology, and even system architectures they were built on can become increasingly obsolete.

Problem: How to deal with legacy code during the Container revolution?

Solution: Modernize an application by incrementally developing a new (strangler) application around the legacy application.

Like every solution, one should know when and how much to apply it!

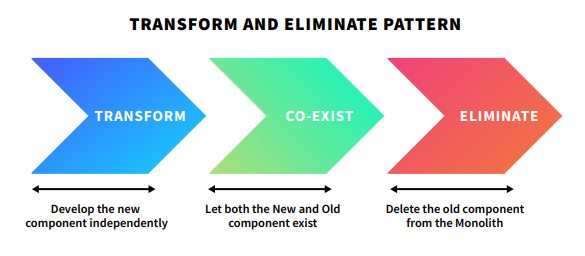

Transform and Eliminate Pattern

Serverless Architecture

“Serverless architectures are application designs that incorporate third-party “Backend as a Service” (BaaS) services, and/or that include custom code run in managed, ephemeral containers on a “Functions as a Service” (FaaS) platform.”

“The first "pay as you go" code execution platform was Zimki, released in 2006, but it was not commercially successful.”

Is this just a hype?

Companies move towards such solutions mainly because:

Systems built this way are often more flexible and amenable to change

Better separation of concerns, each component plays a more architecturally aware role

And let's not forget that fascinating cost benefits!

Serverless Framework

“The Serverless Framework helps you build serverless apps with radically less overhead and cost. It provides a powerful, unified experience to develop, deploy, test, secure and monitor your serverless applications.”

Is this just a hype?

Companies move towards such solutions mainly because:

It is free and open-source

Supports 8 cloud providers including AWS, GCP, and Azure

Focus on business and System security

AWS Batch Selenium Tests

The Tech Stack

Python 2.7

• Behave (BDD) framework
• Selenium 3
• Docker

The Tech Stack (2)

• Batch
• IAM roles
• S3 bucket for artifacts
• CloudWatch rules as triggers

The Tech Stack (3)

• Github
• Terraform or Serverless AWS Batch plugin
• Slack

The Basics

“ ...easily and efficiently run hundreds of thousands of batch computing jobs on AWS ... dynamically provisions the optimal quantity and type of compute resources (e.g., CPU or memory optimized instances) based on the volume and specific resource requirements of the batch jobs submitted.”

“ With AWS Batch, there is no need to install and manage batch computing software or server clusters that you use to run your jobs, allowing you to focus on analyzing results and solving problems. AWS Batch plans, schedules, and executes your batch computing workloads across the full range of AWS compute services and features, such as Amazon EC2 and Spot Instances.”

AWS Batch Components

• Jobs
• Job definition
• Job queues
• Job schedular (SLS rate)
• Compute environments

Terraform

• Infrastructure as Code to provision and manage any cloud, infrastructure, or service
• Why use declarative configuration files
  • Collaborate and share configurations
  • Evolve and version your infrastructure (AWS resources)
  • Automate provisioning (plan & build)

Serverless Batch

• A Serverless v1.x plugin that makes creating and running AWS Batch tasks as easy as creating a Serverless Lambda Function
• Works with
  • Serverless >= v1.43
  • Python 3.7
  • Node.JS 10

Docker

• Platform as a service (PaaS) product that uses OS-level virtualization to deliver software in containers.
• Define your test environment in a Dockerfile, build and publish the image.
• Two ways of get your code and infrastructure together
  • Bake the test code inside the container. You must use private container registry.
  • Keep your Dockerfile clean and pull code at runtime. You can use AWS S3 bucket to store your ssh keys.

Orchestration Overview

Orchestration Overview

Orchestration Overview

Orchestration Overview

Orchestration Overview

Orchestration Overview

Orchestration Overview

Orchestration Overview

AWS Lambda Selenium Monitoring

The Tech Stack

Python 3.7

• Selenium

AWS

• Lambda with Layers (Chromedriver and Headless Chromium)
• IAM role and SSM Parameter store
• S3 artifacts bucket and Cloudwatch logs

“ AWS Lambda lets you run code without provisioning or managing servers ... all with zero administration. Just upload your code and Lambda takes care of everything required to run and scale your code with high availability.”
